(Repost of 2019 blog post)
Hydraulic manifolds have traditionally been machined from solid metal blocks — a process that demands time, precision, and plenty of material. But as additive manufacturing (3D printing) continues to mature, it’s unlocking a new generation of hydraulic designs that were once impossible to produce.

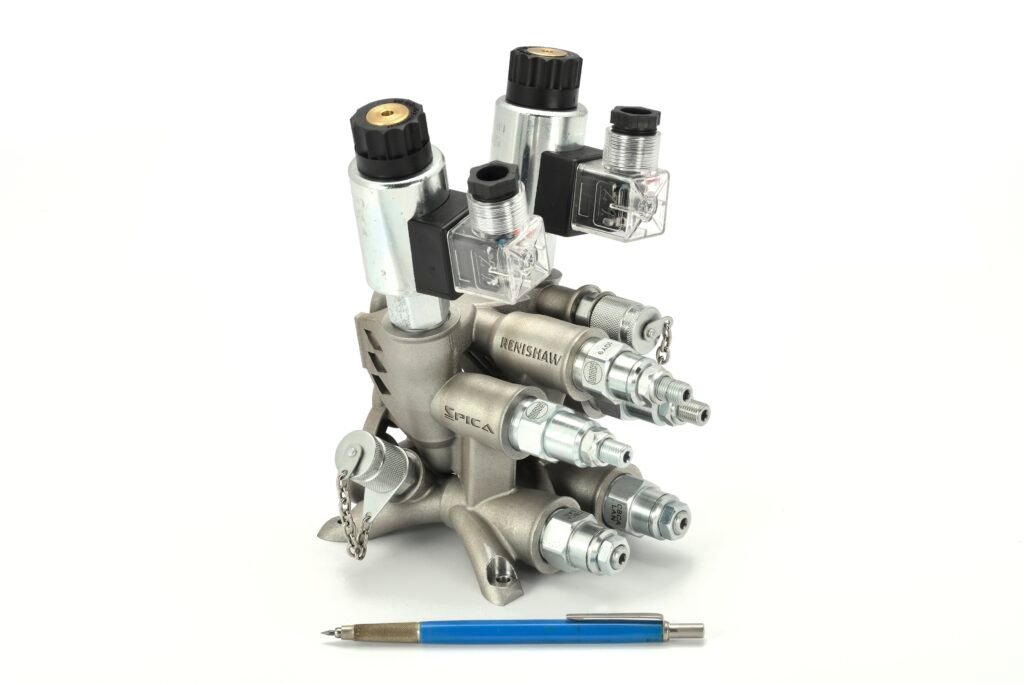

At Spica Hydraulics, we’re exploring how 3D printed hydraulic manifolds can deliver unprecedented performance, compactness, and design freedom — all while shortening delivery times.
Why 3D Printing Changes Everything
When manifolds are 3D printed instead of machined, several constraints of conventional design simply disappear:
1. No plugs, no compromises
With additive manufacturing, internal flow paths can bend and curve naturally. There’s no need to drill intersecting holes and close them with plugs — a major source of leakage risk and machining time.
2. Flow paths can take any shape
Channels no longer have to be circular or straight. Designers can use optimised, organic geometries that maintain velocity, reduce turbulence, and minimize pressure drops.
3. Freedom from flat faces
Traditional manifolds are bound by the six faces of a block. In 3D printing, cavities can be oriented in any direction — limited only by imagination, not tooling.
4. Material where it matters
Additive manufacturing builds only what’s needed. Internal braces can be included for strength, while unnecessary mass is eliminated — resulting in a lighter yet structurally sound component.
5. Natural cooling advantage
Complex internal geometries mean more surface area, allowing better heat dissipation around hot-running valves such as reliefs and counterbalance valves.
6. Faster delivery, fewer post-processes
No deburring, no plug installation, and no complex setups. Printing leads to faster turnaround and cleaner internals straight out of the printer.
7. Consistent, defect-free material
Modern 3D printing processes produce fully dense, homogeneous metal — crack-free and ready for demanding hydraulic pressures.
The result
The result is a manifold that’s smaller, lighter, and more efficient than its machined counterpart — ideal for applications where performance matters more than cost.
Some of the areas where we’re already seeing interest include:
• Racing – hydrulic components in racing where every gram saved counts.
• Handheld Mining Tools – many countries impose strict legal weight limits on what an operator can carry.
• Mining Machinery – where manifolds often need to be manually removed for service; lower weight means safer and faster maintenance.
And that’s just the beginning.
If your application demands lightweight, compact, and high-performance hydraulic systems, we’d love to explore how additive manufacturing can transform your design.
